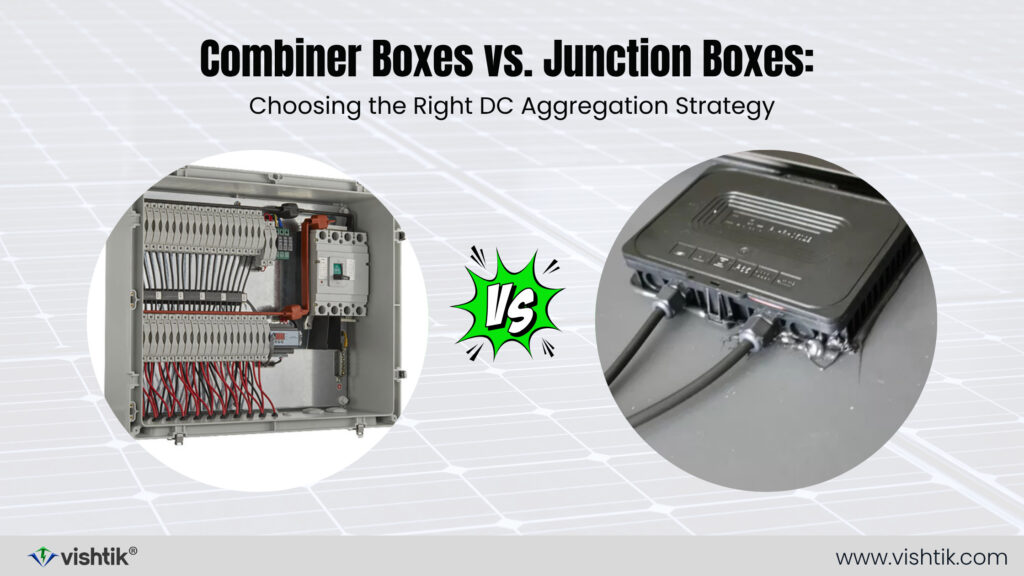

Combiner Boxes vs. Junction Boxes: Choosing the Right DC Aggregation Strategy

In every PV system, DC aggregation plays a critical role in simplifying wiring, minimizing voltage drop, and ensuring code compliance.
Yet one of the most debated design questions remains:
Should you use a combiner box vs junction box for your solar system?

Let’s break down how each works — and when one option clearly outperforms the other.

1. What Is DC Aggregation?

DC aggregation refers to how multiple string outputs from solar modules are combined before connecting to the inverter.
This can be achieved in two main ways:

• Junction Box (JB): A simple enclosure where conductors are spliced and extended.

• Combiner Box (CB): A protected enclosure that not only combines but also includes overcurrent protection (fuses or breakers), disconnects, and sometimes monitoring features.

2. Junction Box — The Simplest Form of Aggregation

A junction box is often used for:

• Smaller systems (typically ≤3 strings)

• Short DC wire runs

• Controlled environments with limited exposure


Advantages:

• Low cost and minimal components

• Simple to install and replace

• Fewer points of failure if properly sealed


Limitations:

• No overcurrent protection (OCPD)

• Limited access for troubleshooting

• Not ideal for high-current systems or NEC 690.9 compliance scenarios


When to use:

Small residential arrays with short homeruns
Roof-mounted systems where all strings run directly to the inverter

3. Combiner Box — The Smart Aggregation Hub

A combiner box is designed for larger systems and safety compliance.
It integrates fuses, circuit breakers, surge protection, and sometimes monitoring (like string-level current sensing).

Advantages:

• Includes overcurrent protection (NEC 690.9 compliance)

• Easier isolation during maintenance

• Reduces conduit runs and wiring complexity

• Supports remote monitoring in advanced models


Limitations:

• Higher cost (hardware + installation)

• Requires space and weatherproofing

• Potential for overheating if not properly ventilated


When to use:

Commercial & utility-scale systems
When combining more than 3–4 strings per MPPT
When OCPD or SPD is required by AHJ or inverter specs

4. Code Reference: NEC Requirements

• NEC 690.9(A): Requires overcurrent protection for each source circuit unless exempted by manufacturer specs.

• NEC 690.13: Mandates disconnecting means for PV source circuits — often integrated into combiner boxes.

• NEC 690.15: Requires safe servicing isolation — another reason to favor combiners in larger systems.


Pro Tip:

Always confirm if your inverter has built-in string fusing. If it does, a junction box may suffice, provided the conductor ampacity and routing meet NEC 310.15(B)(3) correction factors.

5. Cost vs. Compliance: Finding the Balance

Rule of thumb:

If your system exceeds 3–4 strings per inverter input, or your AHJ requires fused inputs, always go with a combiner box.

6. Field Maintenance Considerations

• Ingress Protection: Use IP65/NEMA 4X-rated boxes for outdoor installs.

• Cable Entry: Use gland plates or conduit hubs to prevent moisture ingress.

• Labeling: Follow NEC 690.31(G) — all DC enclosures must have clear, permanent labels.

• Fuses: Use touch-safe fuses rated for 1000V/1500V DC with UL 2579 certification.

7. Hybrid Approach — Smart Junctions

Some modern systems use “hybrid junction boxes” that include:

• Busbars for combining 2–3 strings

• Inline fuses for limited OCPD

• Prewired connectors for plug-and-play use


These are ideal for residential or small commercial projects where speed and code compliance must coexist.

8. Final Recommendation

Conclusion

Choosing between a combiner box and a junction box is not just about cost — it’s about compliance, safety, and serviceability.
As systems scale, the simplicity of a junction box often gives way to the functionality and protection of a combiner box.

The right choice ensures:

• Faster AHJ approval

• Reduced maintenance risk

• Cleaner, safer wiring layouts


In short:

A well-designed DC aggregation strategy isn’t an afterthought — it’s the backbone of a safe and serviceable PV system.
